System Components
Inforduction

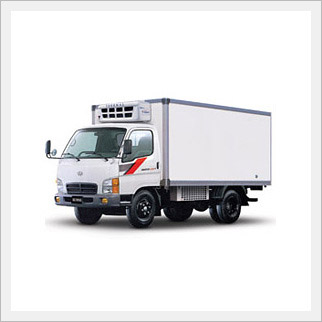

Big capacity temperature control for trucks needing deep-frozen capability.
- Maximum capacity for deep frozen products
- Dual fan evaporator for optimum airflow
- Chlorine free refrigerant, R-404A
- Electronic in-cab controls
- High cooling capacity on electric standby-uit
- optional
Specifications
|
Unit
Name |
THERMAL-2500S |
|
Compressor |
Model |
TM16
or equivalent |
|
Displacement |
163cc |
|
Lubricating
oil |
CASTROL
SW32 |
|
Condenser |
Coil |
Aluminum
Fin + Copper TUBE |
|
Fan |
Propeller
fan 2EA |
|
Weight |
35kg |
|
Evaporator |
Coil |
COATED
Aluminum Fin + Copper TUBE |
|
Fan |
Propeller
fan 2EA |
|
Weight |
34kg |
|
Voltage |
|
DC12V
/ DC24V |
|
Defrost |
|
Automatic
& manual hot gas defrost |
|
Structure |
|
Split
direct drive unit |
|
Installation |
|
Nose
/ under mounted type |
|
Refrigerant |
|
R404a
(R134a) |
|
Refrigerant-charge |
1.7
∼2.0kg |
|
Stand-by
unit |
Voltage |
220V
/ 380V, 3∼5HP |
|
Eletric
Moter |
AEG
/ LG |
|
Weight |
46kg |
Cooling Capacity
|
Refrigerant
Temperature |
T-2500S |
T-2500SE |
|
watts |
Kcal/h |
BTU/h |
watts |
Kcal/h |
BTU/h |
|
R404a |
1.7°C |
35°F |
4,689 |
4,032 |
16,000 |
3,956 |
3,402 |
13,500 |
|
-17.8°C |
0°F |
2,559 |
2,200 |
8,730 |
1,814 |
1,560 |
6,190 |
|
-29°C |
-20°F |
1,905 |
1,638 |
6,500 |
1,219 |
1,048 |
4,160 |
|
R134a |
1.7°C |
35°F |
4,390 |
3,780 |
15,000 |
3,605 |
3,100 |
12,300 |
|
-17.8°C |
0°F |
1,861 |
1,600 |
6,350 |
1,744 |
1,500 |
5,950 |
Type
|
|
|
|
| |
|
|
|
